NetApp Filer Template for Cacti

Description:

This is a host template for Cacti for the NetApp filer. It will graph network interfaces, cpu usage, cache age, nfs and cifs operations, as well as per-volume graphs for disk, file and inode usage.

This template includes some bits and parts from other templates that I have gathered from the Cacti forums. In particular, bits from this page and this page have been incorporated. For the per-volume statistics in particular, I cleaned up the original XML file and created data source and graph templates referencing it.

This template was extracted from cacti using the normal export function. I have not tested a re-import, but don't see why it wouldn't work. In addition, you will need the netapp-volumes.xml file (also below) which should be placed in the resource/snmp_queries/ directory alongside its pre-existing friends.

Update: 4/29/2010. Fixed a bug in the volume disk space graphs. Apparently multiplying up by 1024 to turn Kbytes into bytes, then back down via the automagic convertion to M and G was causing a math error.

Screenshots:

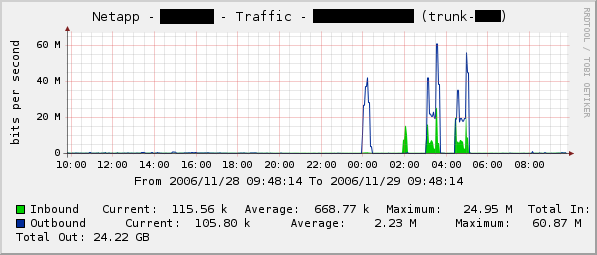

Interfaces:



Cache Age:



NFS Ops:



CIFS Ops:


(well, if I was using CIFS then there would probably be something here)

CPU Load:

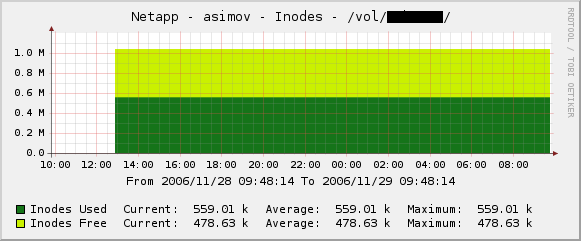

Per Volume Graphs: (usage, files, inodes)







Downloads:

cacti_host_template_netapp_old.xml (import this)
cacti_host_template_netapp.xml (import this)
netapp-volumes.xml (this goes in the resource/snmp_queries/ directory)
